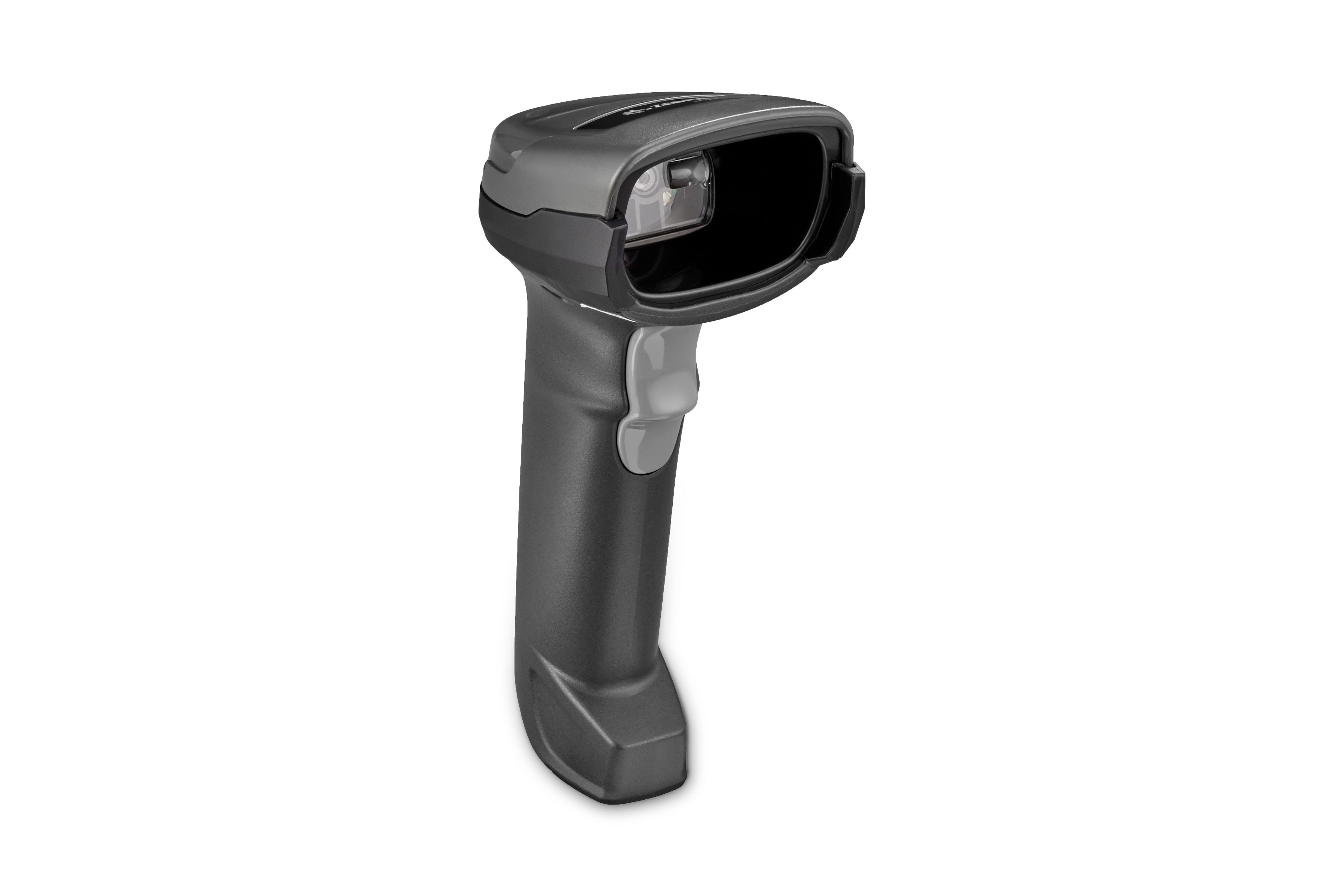

Corded Handheld Scanner DS2208
- Omnidirectional Scanning: Captures 1D and 2D barcodes from any angle, enhancing user efficiency.
- Plug-and-Play Deployment: Pre-configured and ready to use out of the box, minimizing setup time.
- Auto-Host Detect Cables: Automatically identifies the connected interface, simplifying integration.
- Ergonomic Design: Lightweight and balanced to reduce user fatigue during extended use.
- Durable Construction: Withstands multiple 5 ft. (1.5 m) drops to concrete, ensuring reliability.

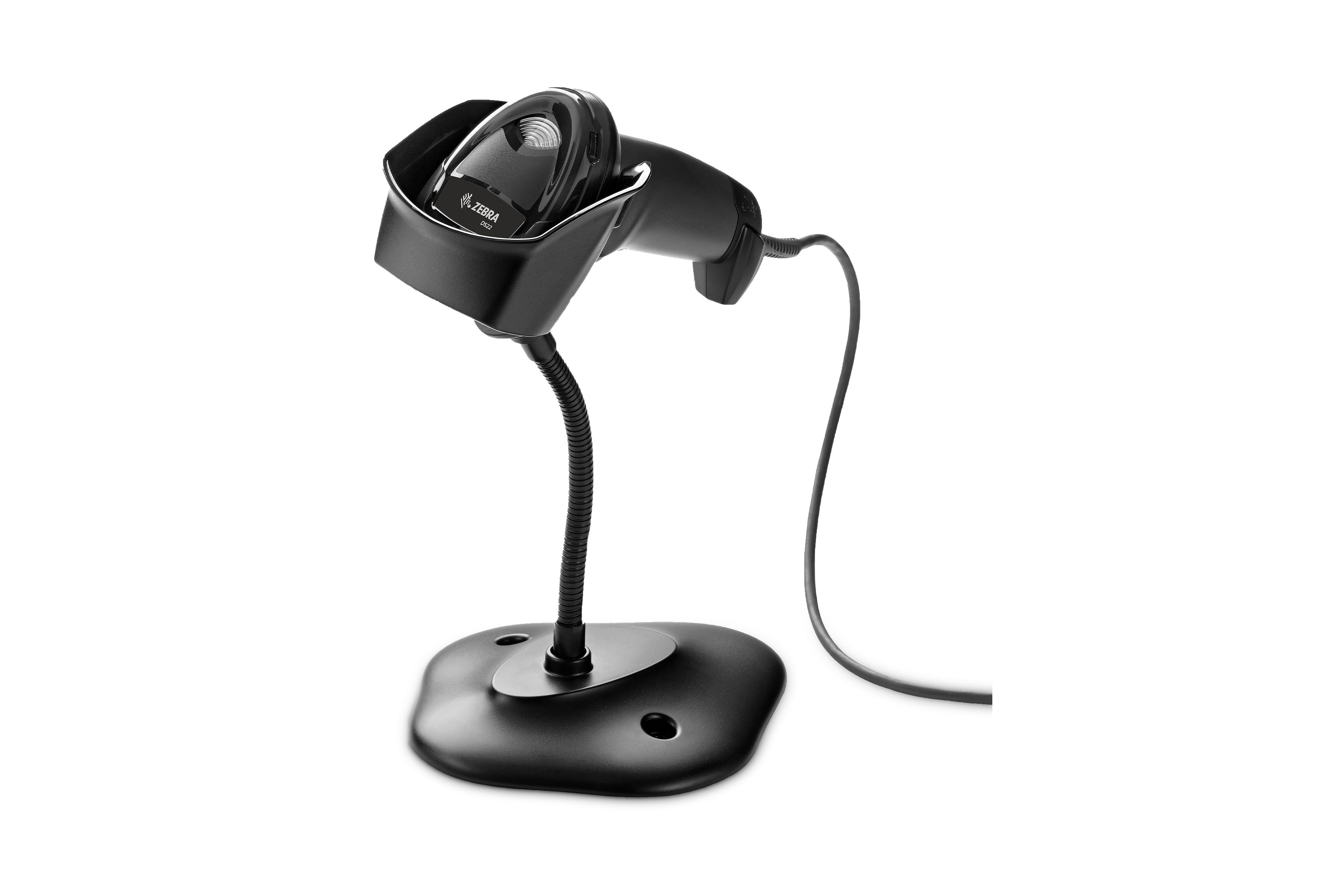

- Flexible Mounting Options: Compatible with optional stands for hands-free operation.
- Multiple Interface Support: Supports USB, RS-232, and Keyboard Wedge interfaces.
- Comprehensive Symbology Support: Reads a wide range of 1D and 2D barcodes, including QR codes and PDF417.
Overview
The Zebra DS2208 is a corded handheld 1D/2D barcode scanner designed for retail, hospitality, and light industrial environments. It offers omnidirectional scanning, allowing users to capture barcodes from various angles without precise alignment. With its plug-and-play setup and compatibility with multiple interfaces, the DS2208 ensures quick deployment and ease of use. Its ergonomic design reduces user fatigue, making it suitable for prolonged use in high-volume settings.
Specifications
- Model Number: DS2208
- Dimensions: 6.5 in. H x 2.6 in. W x 3.9 in. D (16.5 cm x 6.6 cm x 9.9 cm)
- Weight: 5.7 oz (161.6 g)
- Scan Technology: Array Imager
- Image Sensor: 640 x 480 pixels
- Scan Speed: Up to 30 in./sec (762 mm/sec)
- Print Contrast: 25% minimum reflective difference
- Supported Symbologies: 1D: UPC/EAN, Code 39, Code 128, Code 93, Codabar, Interleaved 2 of 5, Discrete 2 of 5, MSI, GS1 DataBar 2D: PDF417, QR Code, Data Matrix, Aztec, MaxiCode, Micro PDF417, Composite Codes
- Interfaces: USB, RS-232, Keyboard Wedge
- Operating Temperature: 32°F to 122°F (0°C to 50°C)
- Storage Temperature: -40°F to 158°F (-40°C to 70°C)
- Humidity: 5% to 95% RH, non-condensing
- Drop Specification: Withstands multiple 5 ft. (1.5 m) drops to concrete
- Sealing: IP42
- Power Requirements: 4.5 to 5.5 VDC
