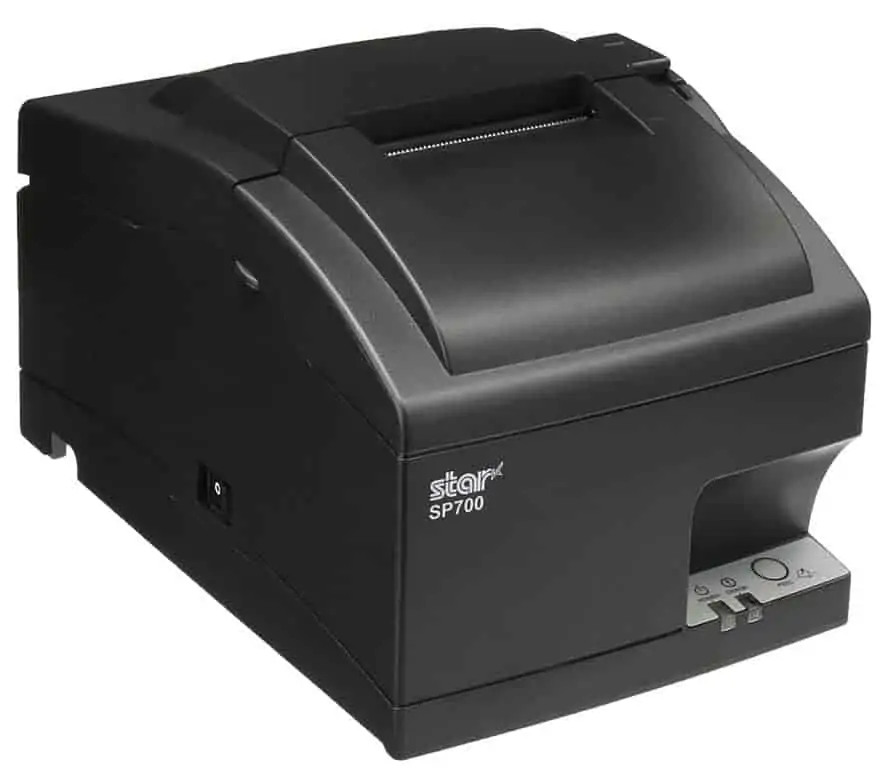

Star Micronics Kitchen Impact Printer SP742ME
- Fast Printing: Prints at speeds up to 9.84 inches per second (250 mm/sec).
- Reliable Performance: Designed for high-volume kitchen environments with a robust build.
- Reliable Dot Matrix Printing: Uses impact printing technology suitable for kitchen environments with heat and moisture.
- Fast Output: Prints at speeds up to 4.7 lines per second, ensuring efficiency during peak service times.
- Multiple Paper Widths Supported: Compatible with 76 mm, 69.5 mm, and 57.5 mm paper widths via roll paper guides.
- Durable Cutter Options: Available in tear bar and auto cutter models to match operational needs.
- Peripheral Compatibility: Includes peripheral drive connection for Clover devices such as cash drawers.
- Robust Design: Built to withstand kitchen conditions with a splash-resistant and heat-resistant housing.
- Easy Paper Loading: "Drop-in and print" system ensures quick paper changes.
- Self-Diagnostic and Error Indication: LED and buzzer alerts with recoverable error handling.
Overview
The Kitchen Impact Printer by Star Micronics is a reliable and robust dot matrix printer designed for demanding kitchen and restaurant environments. It delivers crisp, easy-to-read prints on bond or carbonless paper, even in hot and humid conditions. With multiple interface options and excellent connectivity, it integrates smoothly with modern POS systems while maintaining high performance under intense daily use. It is particularly well-suited for printing kitchen orders and restaurant tickets where durability and reliability are critical.
Specifications
- Model Name: SP742ME
- Printer Method: 9-pin impact dot matrix
- Print Speed: Approx. 4.7 lines/sec (at 40 columns)
- Paper Handling: 80 mm width; thickness from 0.053 to 0.085 mm; maximum roll diameter of 83 mm
- Widths: 76 mm / 69.5 mm / 57.5 mm
- Thickness: Single 0.06–0.085 mm; Multi-copy up to 0.2 mm (original + 2 copies)
- Roll Diameter: Up to 85 mm
- Ribbon: Black ribbon cartridge included
- Ease of Use: Drop-in paper loading, easy ribbon replacement
- Connectivity Options: USB, Serial, Parallel, Ethernet, Bluetooth (varies by model)
- Peripheral Drive: Connector for external devices like cash drawers
- Operating Environment: 0°C to 50°C
- Power Supply: 100–240V AC, 50/60 Hz
- Dimensions & Weight: Approx. 160 x 245 x 152 mm; weight around 2.6 kg (5.7 lbs)
- Warranty: Covered by Star Micronics standard manufacturer warranty
