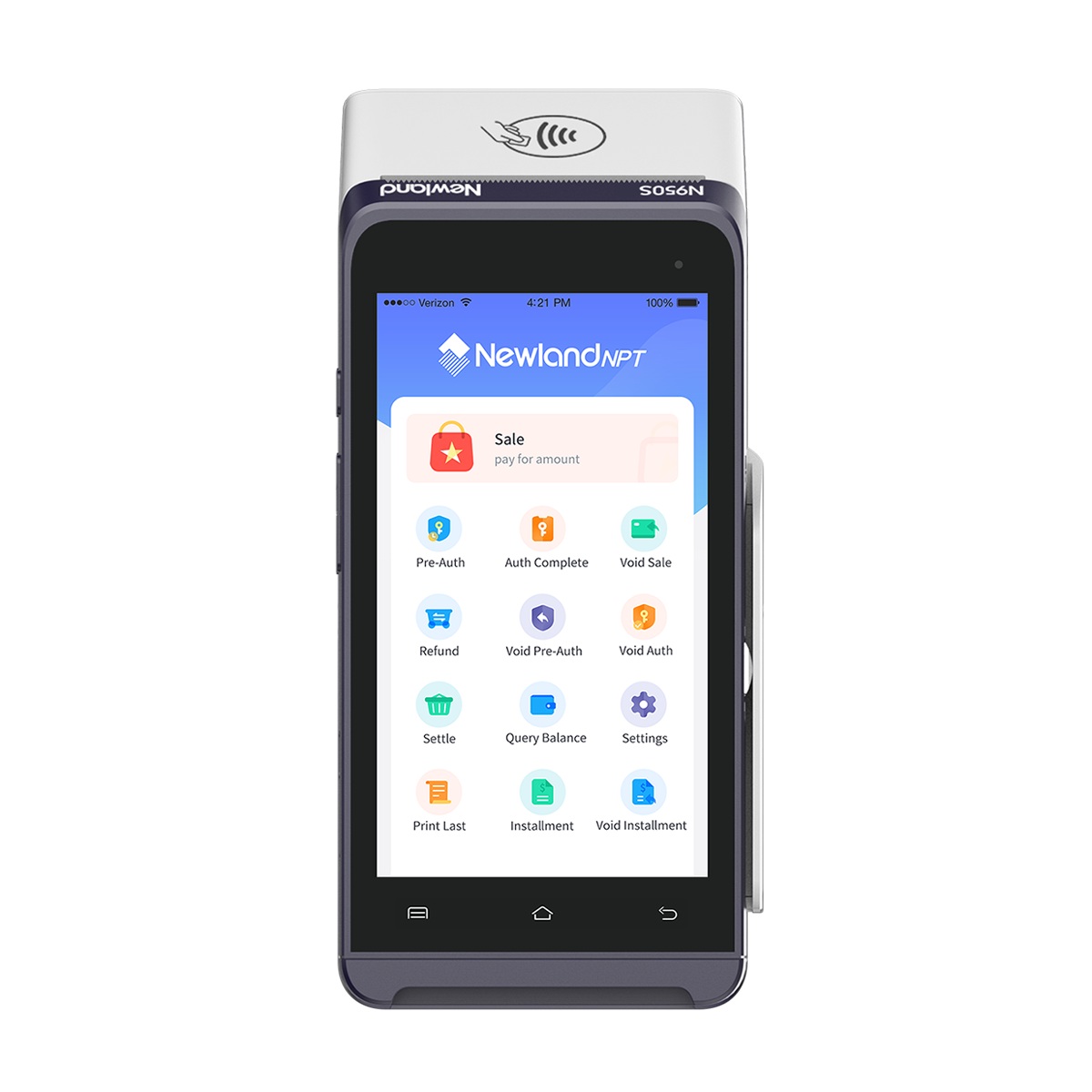

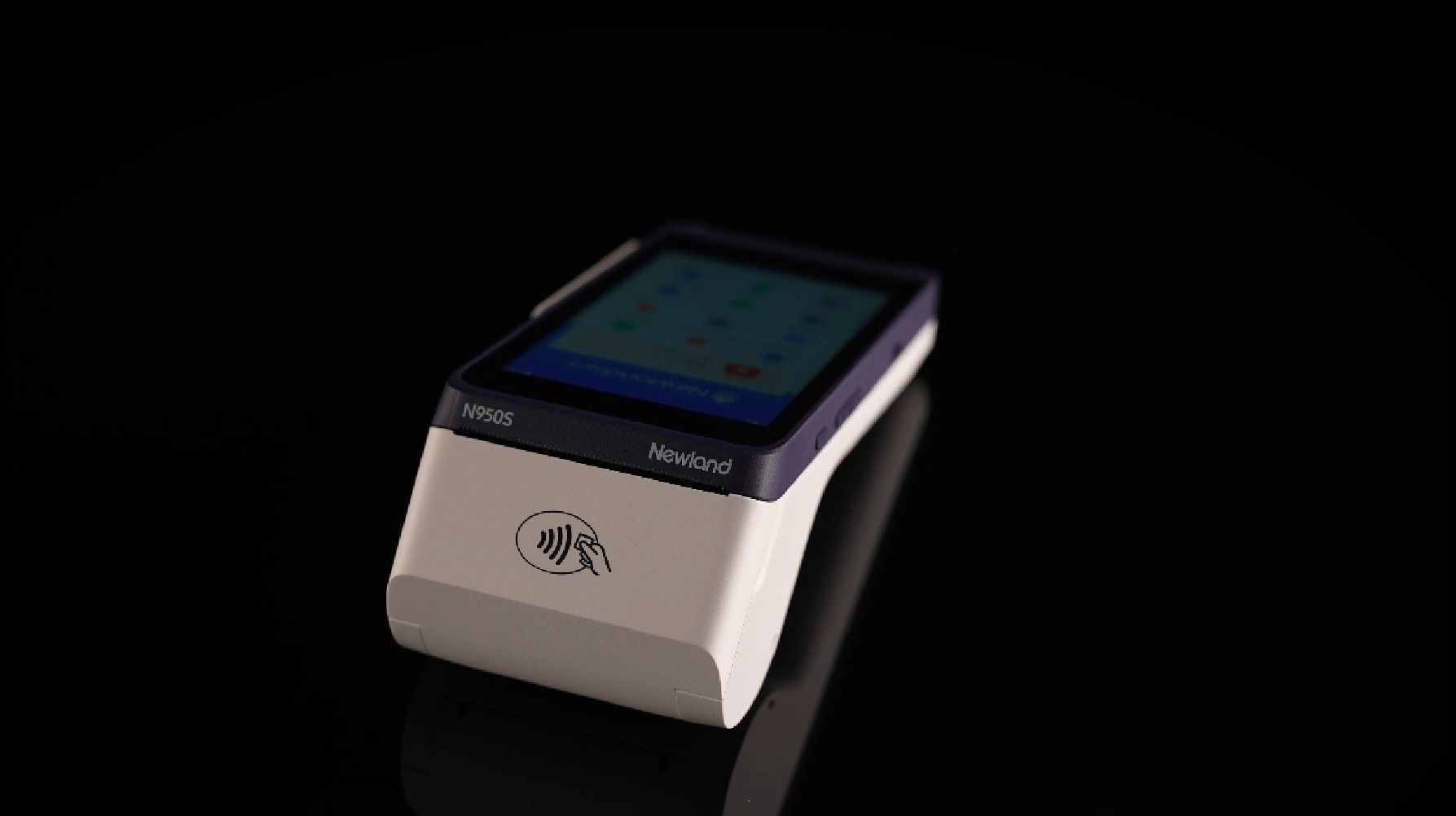

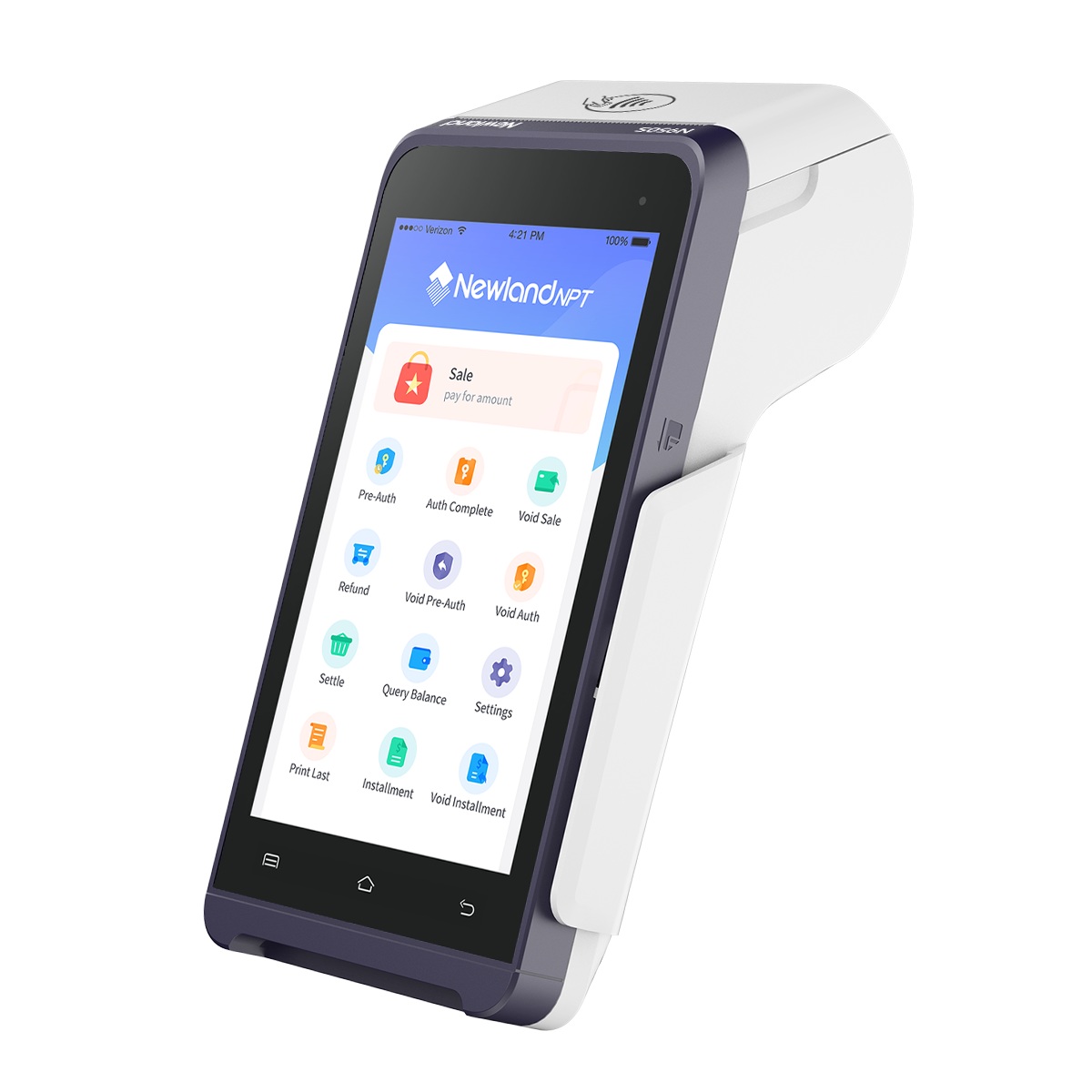

Roc Terminal+ N950-S
- Comprehensive Payment Acceptance: Supports EMV chip cards, magnetic stripe cards, contactless payments (NFC), mobile wallets, and QR-code-based transactions.
- High-Performance Hardware: Equipped with a quad-core Cortex A53 processor and up to 2GB RAM, ensuring smooth operation.
- Integrated Thermal Printer: High-speed thermal printer with a printing speed of 80mm/s and a paper roll diameter of 40mm.
- Advanced Connectivity: Offers 4G, 3G, 2G, Wi-Fi (2.4GHz & 5GHz), Bluetooth 5.0, and GPS for versatile communication options.
- Robust Security: Compliant with PCI PTS 6.x, EMV L1/L2, and supports various contactless payment certifications.
- User-Friendly Interface: Features a 5-inch TFT full-color LCD display with capacitive multi-touch support and electronic signature capability.
- Versatile Card Reader: Supports magnetic stripe, smart card (EMV), and contactless card reading.
- Camera Options: Available with front and back cameras supporting 1D/2D code payments.
Overview
The Roc Terminal N950-S is a countertop SmartPOS device developed by Newland NPT and distributed through Payroc. Designed for modern retail and hospitality environments, it supports a wide range of payment methods, including EMV chip cards, magnetic stripe cards, contactless payments, NFC, and QR-code-based wallets. With its robust hardware, comprehensive connectivity options, and advanced security features, the N950-S enhances customer engagement and streamlines transaction processes.
Specifications
- Operating System: Android 12
- Processor: Quad-core Cortex A53, 2.0GHz; Security Processor: Cortex-M3, 192MHz
- Memory: 2GB RAM, 8GB FLASH; Optional 16GB FLASH; MicroSD card slot up to 128GB
- Display: 5-inch TFT full-color LCD, 1280 x 720 resolution, capacitive multi-touch screen
- Card Readers: Magnetic Stripe Reader: Tracks 1/2/3, bi-directional
Smart Card Reader: EMV L1 & L2 certified
Contactless Reader: Supports ISO/IEC 14443 Type A/B, MIFARE, Felica, NFC - Printer: High-speed thermal printer, 80mm/s; Paper roll diameter: 40mm; Paper width: 58mm
- Connectivity: Wireless: 4G / 3G / 2G; Wi-Fi 2.4GHz & 5GHz (802.11a/b/g/n/ac); Bluetooth 5.0
Positioning: GPS, BEIDOU, GLONASS
Ports: 1 x USB Type-C - Camera Options: Front Camera: 0.3 MP or 2 MP (optional), supporting 1D/2D code payment
Back Camera: 2 MP or 5 MP (optional), supporting 1D/2D code payment - Audio: 1 x Speaker, 1 x Microphone, supports audio recording and media playback
- Keypad: Secure virtual keypad for PIN entry; Physical buttons: Power, Volume Up, Volume Down
- Card Slots: SIM: 2 SIM or 1 SIM + 1 eSIM (optional)
SAM: 1 or 2 slots (optional)
SD: 1 MicroSD slot, up to 128GB - Battery: Li-ion battery, 7.2V/2600mAh/18.7Wh (equivalent to 3.6V/5200mAh)
- Power Supply: Input: 100-240V AC 50/60Hz; Output: 5.0V DC, 2.0A
- Dimensions: 6.85"" (L) x 3.07"" (W) x 2.44"" (H)
- Weight: 0.84 lbs (including battery)
- Operating Temperature: 14°F to 122°F
- Storage Temperature: -4°F to 140°F
- Certifications: PCI PTS 6.x, EMV L1/L2, EMV Contactless L1, PayPass, payWave, American ExpressPay, Discover D-PAS, UnionPay QuickPass, TQM, CE, CB, RoHS, JCB, BIS, Rupay, VCCS
